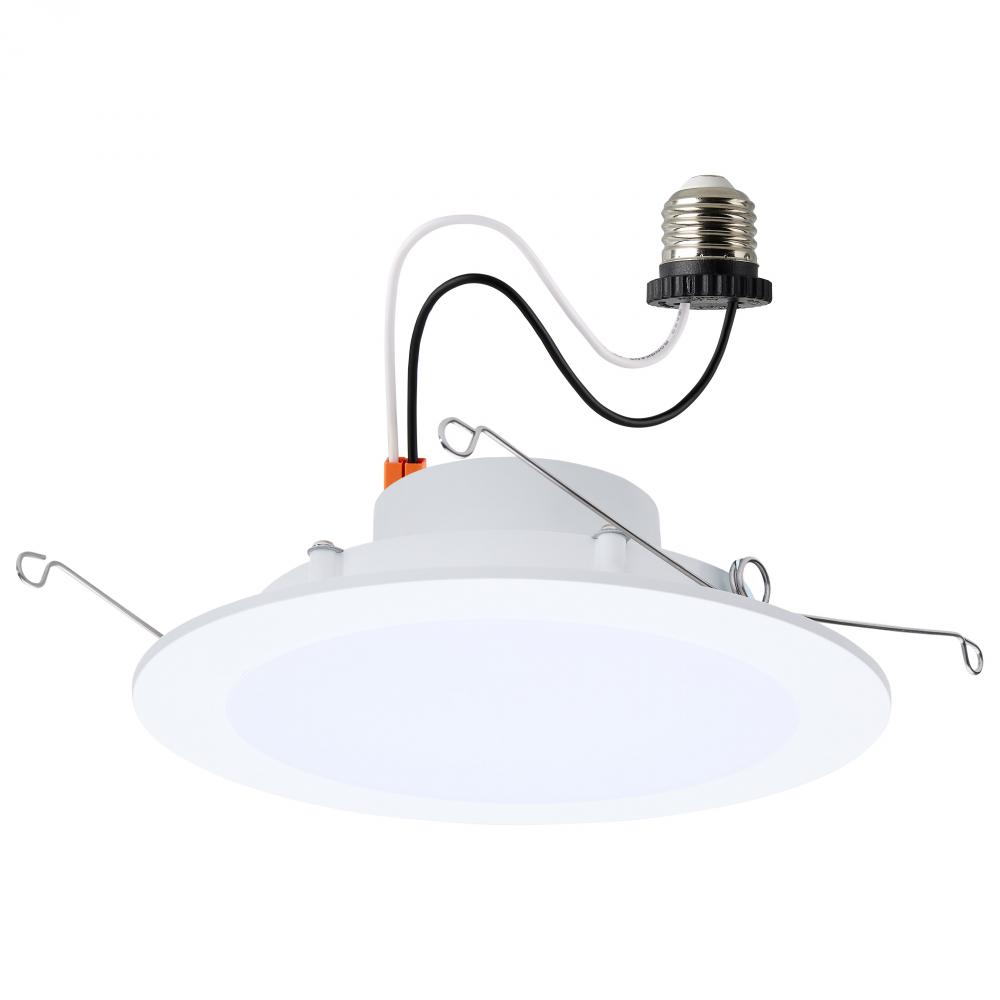

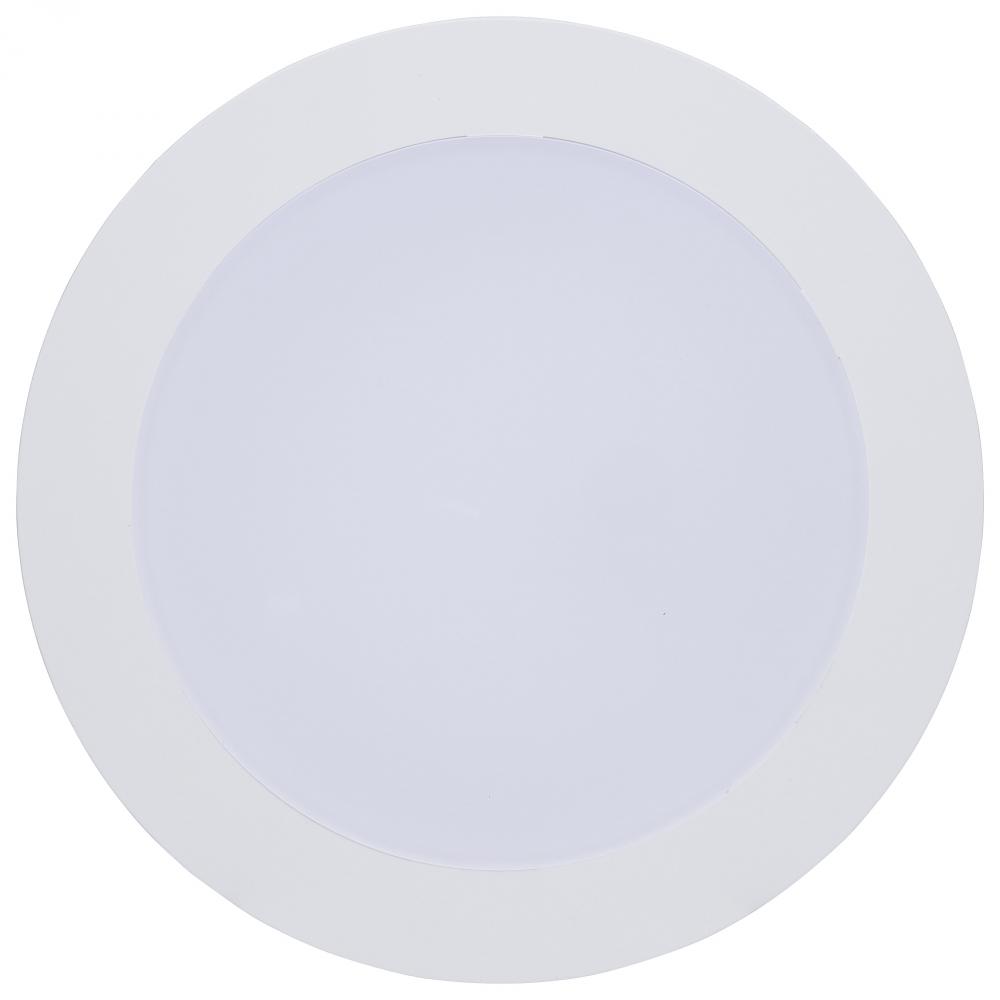

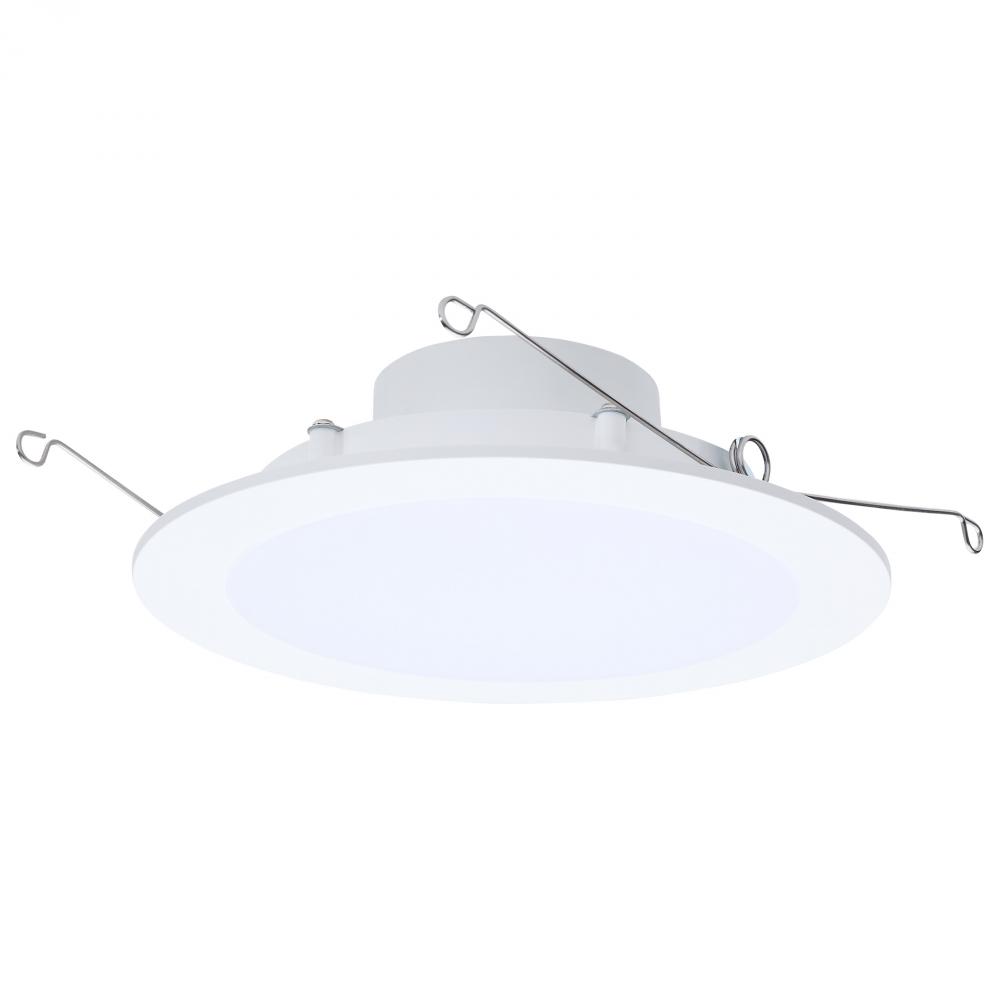

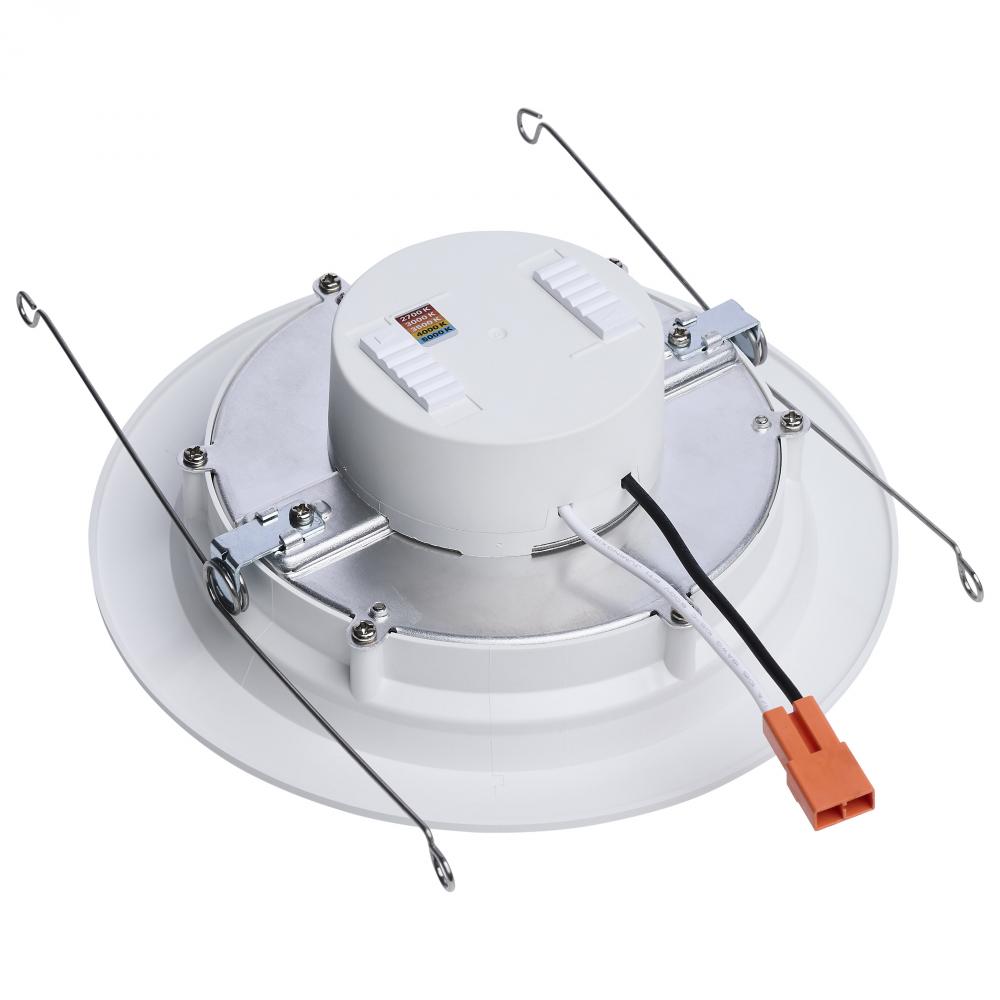

9/11/13 Watt LED Downlight Retrofit; 27K/30K/35K/40K/50K CCT; 6 Inch; Flat Wafer; Round; Matte White by Satco Products Inc.
Call For Price
- Part Number: S11896
- UPC: 00045923118968
- Availability: Item appears to be in stock and ready to ship
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
9/11/13 Watt LED Downlight Retrofit; 27K/30K/35K/40K/50K CCT; 6 Inch; Flat Wafer; Round; Matte White Finish
Specifications
Details
Option:
Energy Star /vendors/vendorImages energy star.jpg
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
Matte White
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Type:
LED
Diameter:
7.28
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Lumens:
900L/1200L/1400L
Ship Carton Height:
7.68
Ship Carton Length:
7.32
Ship Carton Width:
2.4
Warranty:
5-Years
Air Tight:
Yes
Amps:
0.11/0.125/0.135A
ANSI Base:

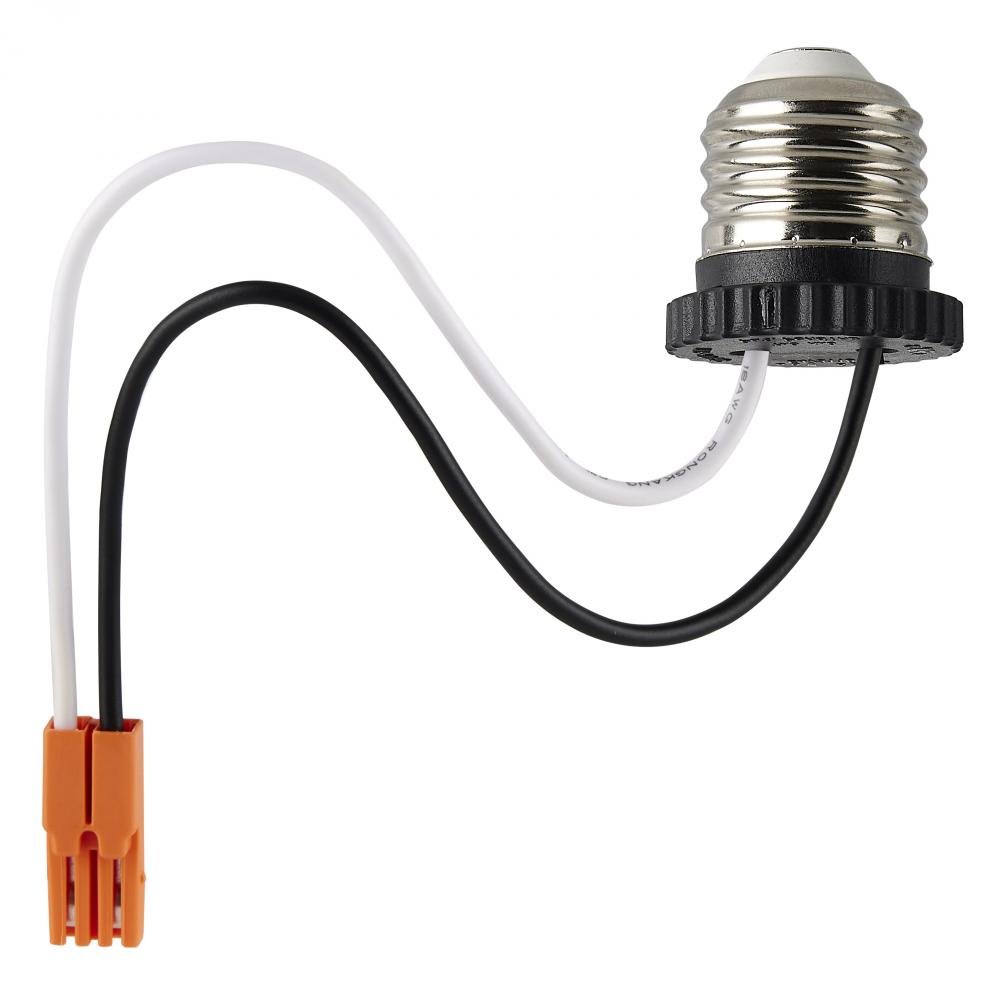

E26 Adapter
Beam Spread:
110
CA Prop-65:
Lead
Can Size:
6 in.
Carton Cubic Feet:
0.0781
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Efficacy:
100.00/109.09/107.69 LPW
ES Category:
Downlight Solid State Retrofit
ES Unique ID:
ESID-3994240
FCC Compliant:
Yes
Feature 1:
Field Selectable (3 wattages and 5 CCT)
Feature 10:
5 Year Warranty
Feature 2:
Flat Lens Design for Reduced Glare
Feature 3:
Non-Conductive "Dead-Front" Trim
Feature 4:
6-Inch Round, White Finish
Feature 5:
Airtight Rated
Feature 6:
90 CRI High Quality Illumination
Feature 7:
Dimmable
Feature 8:
Wet Location Rated
Feature 9:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
85W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Matte Frosted
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's S11896 is a 6-inch, flat-faced PRO Series LED wafer-style retrofit downlight that pairs sleek design with field-selectable performance. Offering three selectable wattages (9W/11W/13W) and five color temperatures (2700K–5000K) via an on-u
Material:
Plastic
Mounting Diameter:
6
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's PRO Series LED wafer-style retrofit downlights offer a sleek, high-performance lighting solution with effortless installation. Designed for versatility, these downlights come in 4-inch and 6-inch round models with a choice of flat-face or
Safety Listing:
cETLus - Classified
SDS class:
LED_Fixture
Short Description:
13WLED/DLR/6/FS/WF/RND/WH
Sloped Ceiling Compatible:
No
Specification Notes:
Default CCT setting is 2700K; Default Wattage setting is 11W
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Material:
Plastic (PS)
Wattage Selectable:
Yes
Weight Lb.:
0.55
Manufactured By:
Satco Products Inc.
